How A Servo Hydraulic Press Works
UNDERSTANDING THE SERVO HYDRAULIC PRESS:
A servo hydraulic press is a type of press that is used to shape or form materials through the application of force. It works by using a hydraulic system to generate the force needed to press or punch a material.
The hydraulic system consists of a hydraulic pump, which is driven by an electric motor, and a hydraulic cylinder, which contains a piston that moves back and forth. When the pump is activated, it creates pressure in the hydraulic fluid, which in turn pushes the piston inside the cylinder.

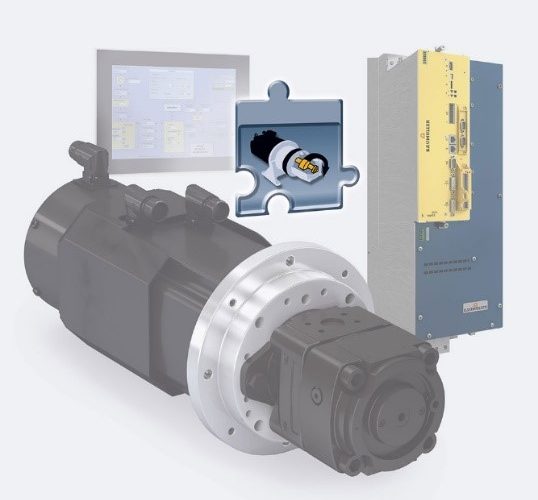

The piston is connected to a ram, which is the part of the press that applies the force to the material being shaped. By controlling the flow of hydraulic fluid to the cylinder, the press operator can control the speed and force of the ram’s movement. A servo hydraulic press uses a servo motor to control the hydraulic pump and adjust the amount of hydraulic fluid that is supplied to the cylinder. This allows for more precise control over the press’s movements and allows it to operate more quickly and efficiently than traditional hydraulic presses. In summary, a servo hydraulic press uses a hydraulic system and servo motor to generate and control the force needed to shape or form materials.
DISTINGUISHING SERVO MOTORS FROM REGULAR MOTORS
A servo motor is different from a regular motor because it includes a feedback mechanism that allows for precise control over its movements. In a servo hydraulic press, the servo motor is used to control the hydraulic pump and adjust the flow of hydraulic fluid to the cylinder. This feedback mechanism allows the servo motor to accurately and quickly adjust the press’s movements based on the operator’s input or programming.
In contrast, a regular motor does not have this feedback mechanism and typically runs at a fixed speed. While it can still be used to power machinery, it does not offer the same level of precision and control as a servo motor. Overall, a servo motor is ideal for applications that require precise control over movement, such as in industrial machinery, robotics, and automation systems.
THE ROLE OF FEEDBACK MECHANISMS IN SERVO MOTORS
The feedback mechanism in a servo motor is used to provide information about the motor’s current position, speed, and torque output. This information is then used by the servo controller to adjust the motor’s behavior and ensure that it moves to the desired position or speed.
There are different types of feedback mechanisms that can be used in servo motors, but one of the most common is called an encoder. An encoder is a device that is mounted on the motor shaft and generates a series of digital pulses as the shaft rotates. By counting these pulses, the servo controller can determine the motor’s current position and adjust its behavior accordingly. In addition to encoders, other types of feedback mechanisms can include resolvers, potentiometers, and Hall effect sensors. These devices all work by providing information about the motor’s current position, speed, or torque output.
Once the feedback information is received by the servo controller, it uses this information to adjust the motor’s behavior through a closed-loop control system. The controller compares the feedback information to the desired position or speed, and then adjusts the motor’s behavior accordingly to ensure that it moves to the correct position or speed.
Overall, the feedback mechanism in a servo motor is a crucial component that allows for precise control over the motor’s movements and makes it ideal for a wide range of industrial and automation applications.
